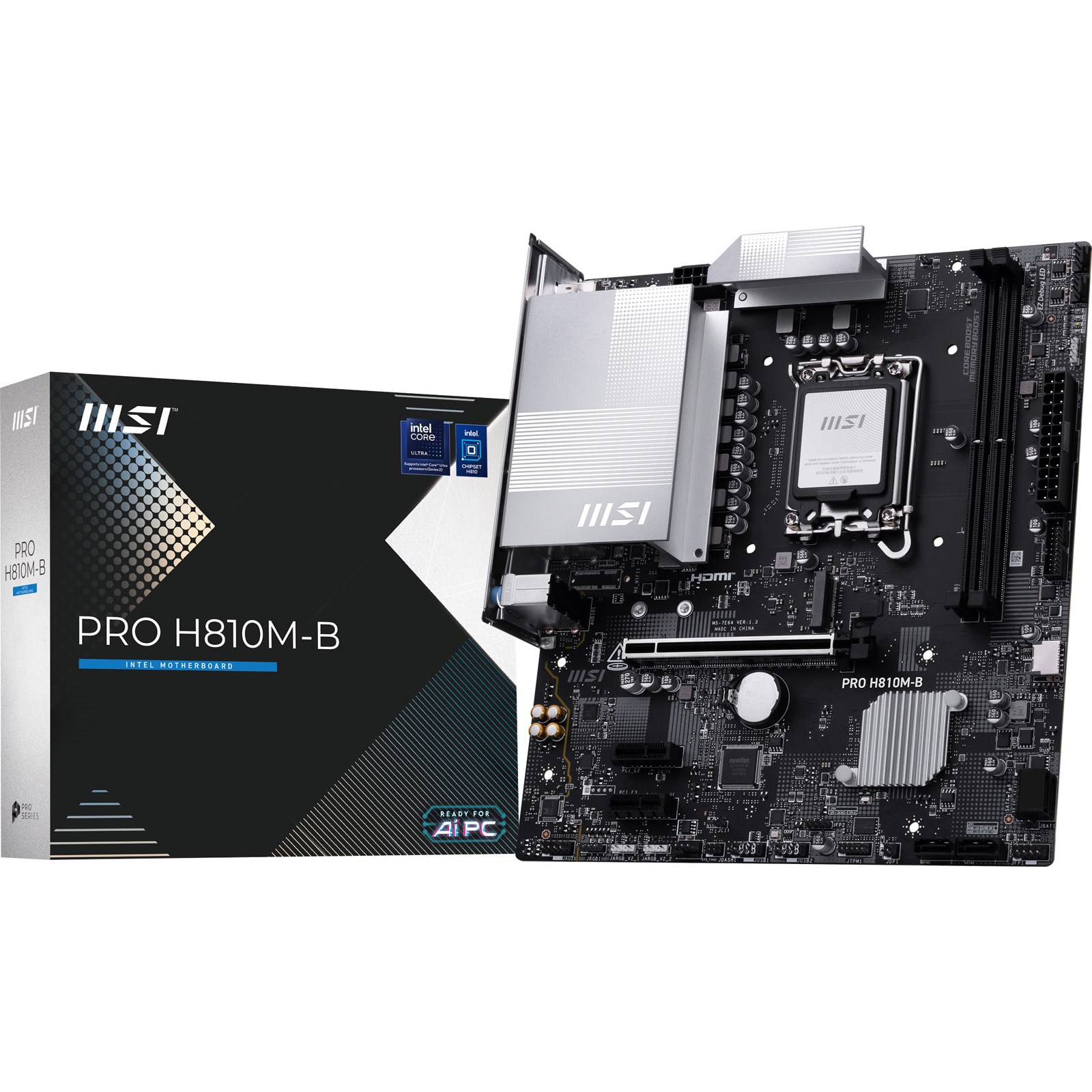

MSI PRO H810M-B mATX Motherboard for Intel LGA1851

Business Elegance
The PRO H810M-B is a business-oriented mATX motherboard constructed around the latest Intel H810 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 2.5G LAN, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

Supports Intel Core Ultra Processors (Series 2)
The PRO H810M-B motherboard supports Intel Core Ultra Processors (Series 2).

Form Factor: mATX

Socket Type: LGA 1851

Chipset: Intel H810

Ultra Power – Direct 6 Phases with P-PAK
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO H810M-B is able to sustain heavy CPU power loads to support system-demanding settings: Digital PWM IC

6-Phase direct CPU power (P-PAK)

1-Phase SA Power

1-Phase GT Power

1-Phase VNNAON Power

Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, and extra choke thermal pads for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A) and system fans (1A).

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

2 x DDR5 Dual Channel (6400 MT/s MAX)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal overclocking performance.

XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 6400 MT/s, supports Intel XMP.

Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage counts, Steel Armor also shields the point of contact from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor and EZ PCIe Clip II)*

2 x PCIe 4.0/3.0 x1 slots

*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen4 M.2 Connector
The PRO H810M-B motherboard features MSI’s M.2 slot:

1 x Gen4 x4 64Gbps slot

EZ DIY
The DIY Friendly designs optimize the assemble process and experience.

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

High-speed Connectivity
2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network experience.

USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

Main Features
Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX)
Core Boost: With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Frozr Guard: Extended Heatsink and MOSFET thermal pads rated for 7W/mK are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Clip II and EZ PCIe Clip II
Lightning Fast experience: PCIe 5.0 slot and Lightning Gen 4 x4 M.2
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experienceCPU

CPU Socket Socket 1851
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors Intel Core Ultra Processors (Series 2)
64-bit Support Yes
Socket LGA1851
Rear Panel I/O Ports

USB Ports 2 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Internal I/O Connectors

SATA Connectors 4 x SATA
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
2 x System fan headers
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Type 2280/2260 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header
1 x Tuning Controller header
Memory

Memory Bus Speed Up to 6400 MT/s
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 2 x DIMM
Motherboard

Northbridge Intel H810
RAID Supported No
SATA Supported Yes
Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
2 x PCI Express 4.0 x1 slots
Graphics Device

Integrated Graphics Supported Yes
Warranty

Warranty 3 Years
Sound

Integrated Sound Realtek ALC897
Network

Integrated Network Realtek 8125
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No
System Requirements

Operating Systems Supported Microsoft Windows 11
System

Software Included (may be trial or restricted) Yes
Drivers Yes
Physical

Form Factor mATX Motherboard
In The Box Motherboard
EU Regulatory Notice
Quick Installation Guide
EZ M.2 Clip II Remover
EZ M.2 Clip II
SATA Cable
Width 220 mm
Length 244 mm
Key Features

Wireless Network No
Motherboard Width 220 mm
Motherboard Height 244 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset Intel H810
Thunderbolt No
Motherboard Model MSI PRO H810M-B
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 6400 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 1
Maximum NVMe M.2 ports 1
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No
Item Details

Manufacturer MSI
Manufacturer Code PRO H810M-B
EAN 4711377337977
Condition New
