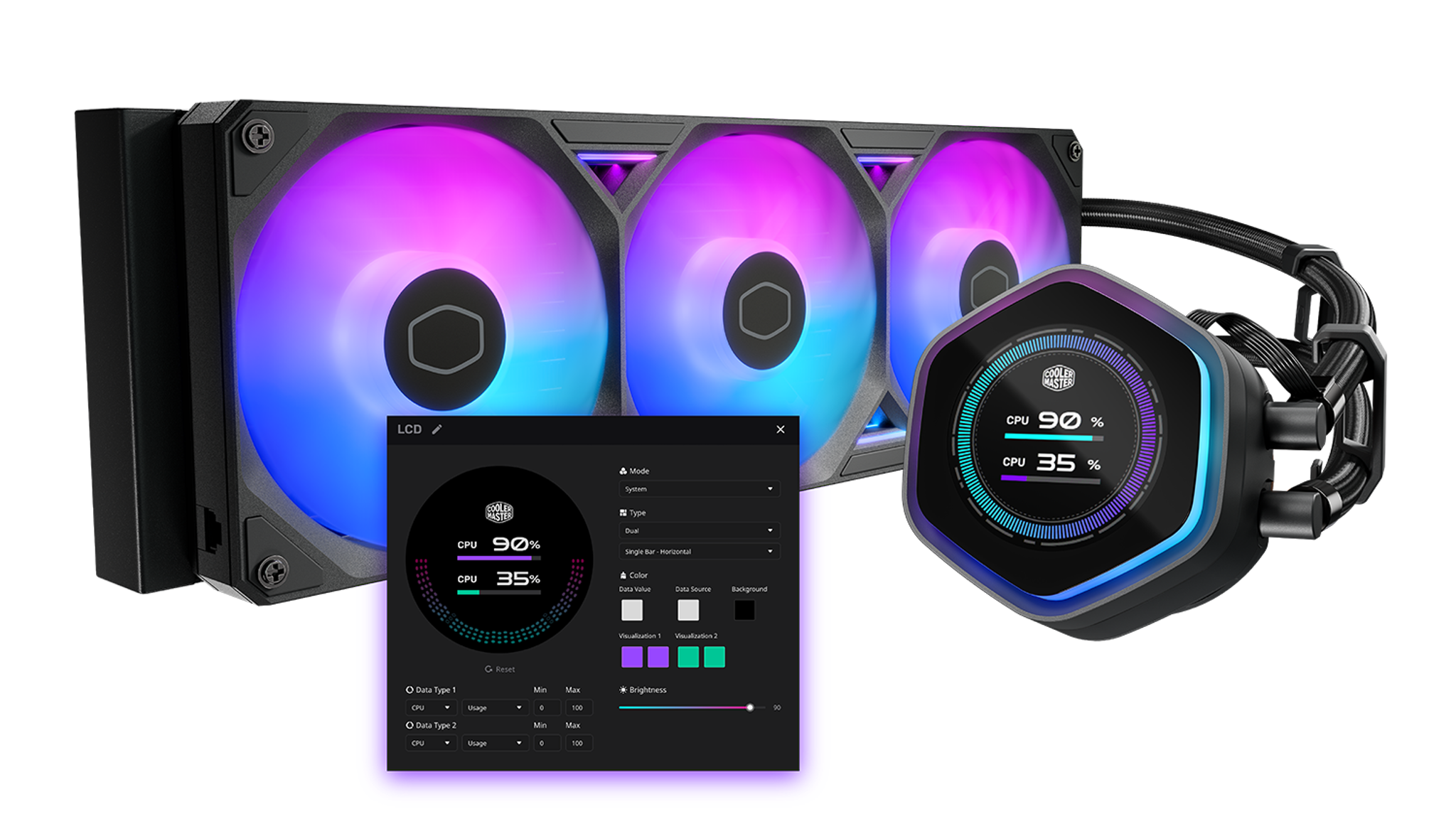

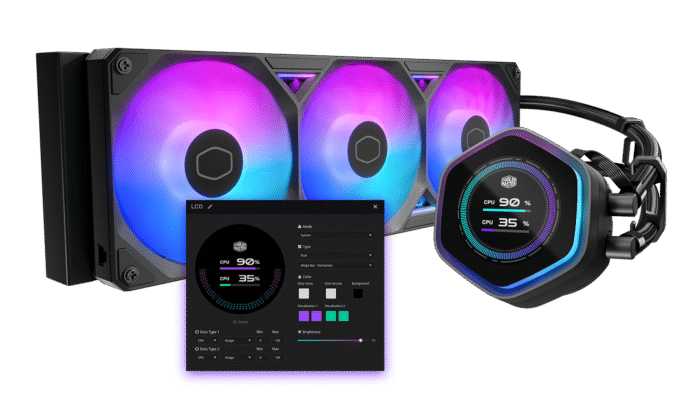

Cooler Master MasterLiquid Atmos II LCD 360mm CPU Liquid Cooler Black (MLX-D36M-A25SZ-L1)

Introducing Cooler Master MasterLiquid Atmos II LCD CPU cooler, designed to elevate your cooling experience. The MasterLiquid Atmos II LCD offers enhanced customization, enabling users to switch the panel information to system stats, GIFs, images, scrolling text and more. The low-profile pump design makes it ideal for fitting into compact cases. The MasterLiquid Atmos II LCD delivers exceptional cooling performance, quieter operation, and the flexibility to personalize your build. Make it yours with Atmos II LCD—the perfect blend of performance, customization, and silence.

LCD panel for enhanced personalization
SickleFlow Edge ARGB fans​
Ultra-low profile pump design​
Quick and easy installation​
Product Number MLX-D24M-A25SZ-L1
CPU Socket Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
CPU Socket AMD® AM5 / AM4
Radiator Material Aluminum
Radiator Dimensions 394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch)
Pump Dimensions 92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch)
Pump Profiles Addressable Gen2 RGB
Pump Speed 3400 ± 300 RPM
Pump MTTF >210,000 Hours
Pump Noise Level 25 dBA (Max)
Pump Rated Voltage 12 VDC
Pump Power Consumption 3.84W
Pump Connector 3-Pin ARGB + 4-Pin PWM
Tube Length 400 mm
Fan Dimensions (LxWxH) 361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch)
Profile Addressable Gen 2 RGB
Fan Quantity 1 PC
Fan Speed 690 ~ 2500 RPM ± 15%
Fan Airflow 322.8 m³/h (190 CFM)
Fan Air Pressure 3.61 mmH2O
Fan MTTF >160,000 Hours
Fan Noise Level 38.5 dB(A)
Fan Bearing Type Loop Dynamic Bearing
Fan Connector 7-Pin PWM + ARGB
Fan Rated Voltage 12 VDC
Fan Rated Current 0.5A
Fan Safety Current 0.8A
Fan Power Consumption 6 W
Radiator Size 360
Cooler Type Liquid Cooler
Series MasterLiquid
LCD Exterior Color Black
LCD Dimensions 85 x 79.2 x 18.7 mm (3.4 x 3.1 x 0.7 inch)
LCD Connector USB Type-C to Motherboard 9 pin
LCD Screen Size 2.1 inches / Diameter 53.3 mm
LCD Screen Resolution 480 x 480 Px
LCD Screen Luminance 300 cd/m²
LCD Screen Refresh Rate 60Hz
LCD Screen Orientation Software-MasterCtrl adjustable
LCD Rated Voltage 5 VDC
LCD Rated Current 0.3 A
LCD Safety Current 0.5 A
LCD Power Consumption 1.5W
Warranty 6 Years
Note** **Prices, Specifications & Features are subject to change without notice
